MOBA FUEL LEVEL MONITORING & GPS FLEET MANAGEMENT SYSTEM
With the MOBA Fuel Level Monitoring System, you can keep track of your vehicle's fuel tank level and consumption.
FUEL DISPENSING MANAGEMENT SYSTEM
The MOBA Fuel Dispensing Management System is designed to eliminate fuel pilferages when dispensing fuel from the mobile fuel bowser or fueling station.
FUELMATIC-950
Modern and future oriented online portal for effective environmental asset management.
AUTOMATIC TANK GUAGING
MOBA GPS Fleet Management provides optimal real-time GPS-based vehicle tracking.
Challenges for effective fleet management
Comprehensive Data Monitoring
By driving the collection tours in one period of time, you risk to drive to households which have no or only half full garbage bins.
Substitute driver
A substitute driver takes over the collection tour if the regular driver is unavailable. This will lead to problems if the tours are unknown.
operating data
To keep the vehicles in optimal working condition, you need information about the driving performance of drivers and the status of trucks.
Solutions
01
IMPROVE FUEL Utilization BY monitoring fuel levels

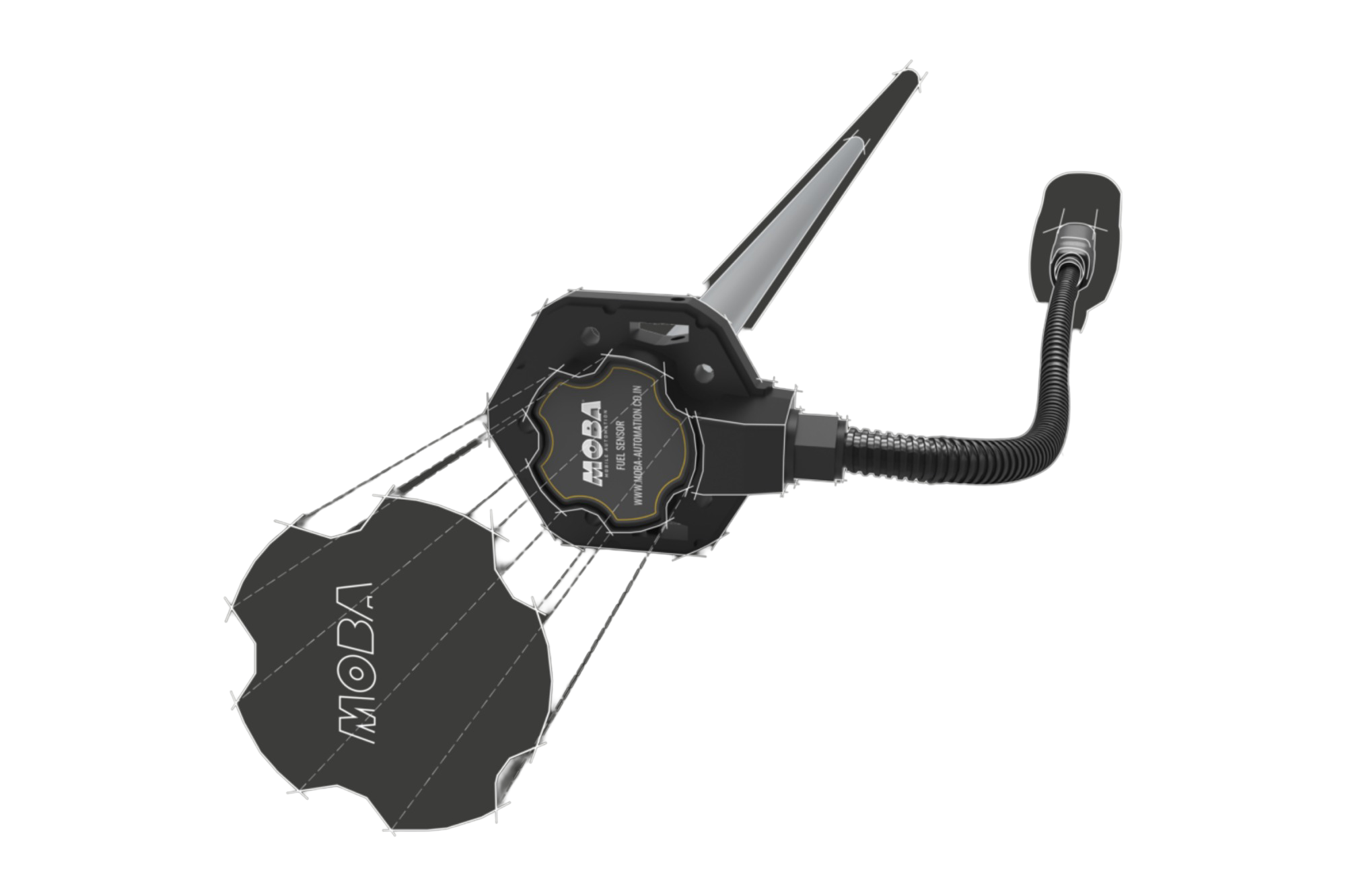

FUEL LEVEL MONITORING SYSTEM
Fuel Level Monitoring is one of the core requirement by the fleet manager to track their assets. Our system measures accurate volumes of fuel in tank also detects immediately irregularities or sudden drops in fuel level. Prevents fuel theft from tank and track assets in real-time. MOBA setting a new benchmark in fuel efficiency and operational excellence. Choose MOBA and be a part of this revolutionary journey.
MOBA FUEL LEVEL MONITORING SYSTEM
FLMS 2G System
MOBA 2G provide GPS based vehicle tracking position accuracy 2.5meter. User can get predefined event alerts like trip monitoring, speed detection, built-in accelerometer+ gyro sensor for motion, tilt, harsh brake, harsh acceleration detection, car crashing, excessive idling engine hours, total engine hours and fuel sensor disconnection. It support one wired I-button for driver attendence and immobilizer system. User can monitor fuel using RS232, RS485 and BLE interface for 4 fuel sensor at a time with single tilt. It provides dual plastic sim.
ADVANCE FLMS 4G System
MOBA advanced GPS tracker support GSM and GPRS for data transmit to the backend server and accurate location using 2G, 4G plastic sim or E-sim. I-button/buzzer configuration for driver attendence monitoring and immobilizer system to control vehicle theft. The user can capture CAN data from the engine, RPM data and odometer data using external device. Anyone can do on-field diagnose via bluetooth and update firmware and configuration by OTA(Over The Air).
02
Pioneering Fleet Management with Cutting-Edge Connectivity
MOBA 4G FLMS
MOBA GPS fleet management offers useful data about fleet using GNSS for acute location tracking on real-time. The user can notify for customised alerts like speed, location, box-open alerts, fuel theft alerts, disconnection of fuel sensors, over-stoppage, harsh accelaration, harsh braking, speed violation, sharp turn, using 6-axis gyro+accelaration module. User get regular notifications via sms, emails, and app notificationfor all actions taking place while driving. Reduce the vehicle idling time to increase the vehicle performance and reduce the cost. The user can implement geo-fence locks, driver identification and attendace for specific requirement.
03
Empowering Safety, Efficiency, and Compliance on the Road Ahead
MOBA 4G TRACKER - AIS 140
The AIS 140 is a GPS vehicle tracking and monitoring device that is certified with the Automotive Industry Standard (AIS) 140 regulation. Revolutionize your fleet management with our cutting-edge MOBA AIS 140 4G device. It supports GNSS +IRNSS for accurate location tracking and works on GSM/GPRS for data transmission to the backend server. It is capable of generating alerts for pre-defined events, viz. box-open alerts, fuel theft alerts, harsh acceleration, harsh braking, speed violation, harsh cornering & panic alert and many more. It contains a 6-axis Gyro + Accelerometer module which can be configured as per user requirement. It supports one-wired I-button/RFID for driver identifiacation.
04
TRACK YOUR FUEL DISPENSE ACTIVITY WITH

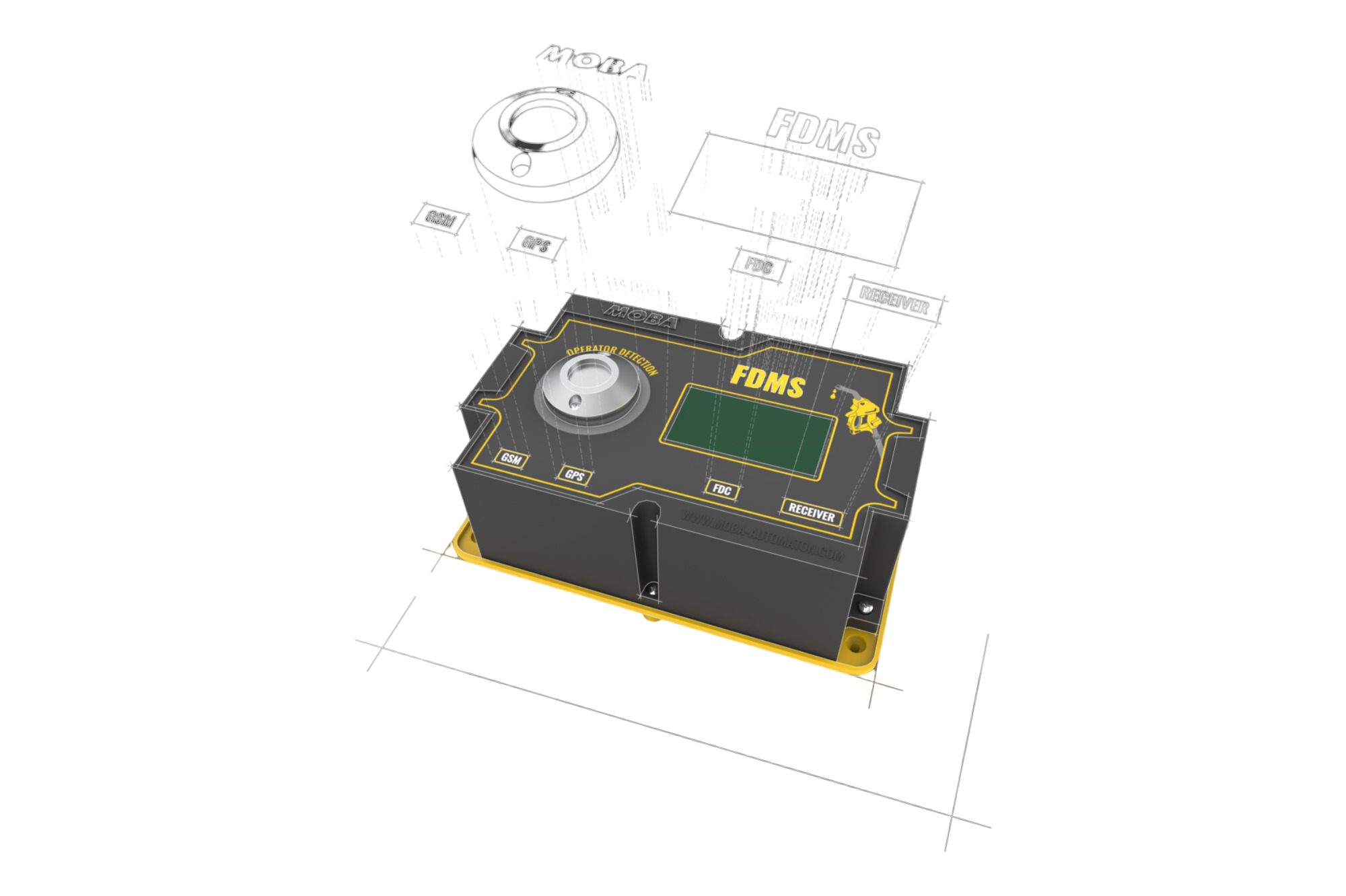

FUEL DISPENSING MANAGEMENT SYSTEM
The MOBA Fuel Dispensing Management System is developed to track and monitor daily fuel dispensing activity from a mobile bowser or a filling station. The FDMS has an RFID tag that can identify a vehicle and a fueling nozzle, making it simple to use. This system integrates with a mobile application and a web service, allowing users to not only monitor and evaluate fuel distribution quantities, but also to prevent pilferage.
FDMS VARIANTS
Fuel Dispense Controller
FDC can digitize the mechanical dispensing unit by controlling valve, pump and metering unit. It records the dispensing quantity by reading the pulsar and enables preset in conventional dispnesing units through solenoid valve.
FDMS - Single Nozzle
A plug and play telematics system with operator identification for automation ready Single Nozzle Dispensing units. It can be used in mobile bowsers as well as stationary pumps. It also consists of RFID based vehicle authentication.
FDMS - Double Nozzle
A plug and play telematics system for automation ready Double Nozzle Stationary pumps. It has two operator identification, one for each pump.It also consists of RFID based vehicle authentication.
05
ONE STOP SOLUTION

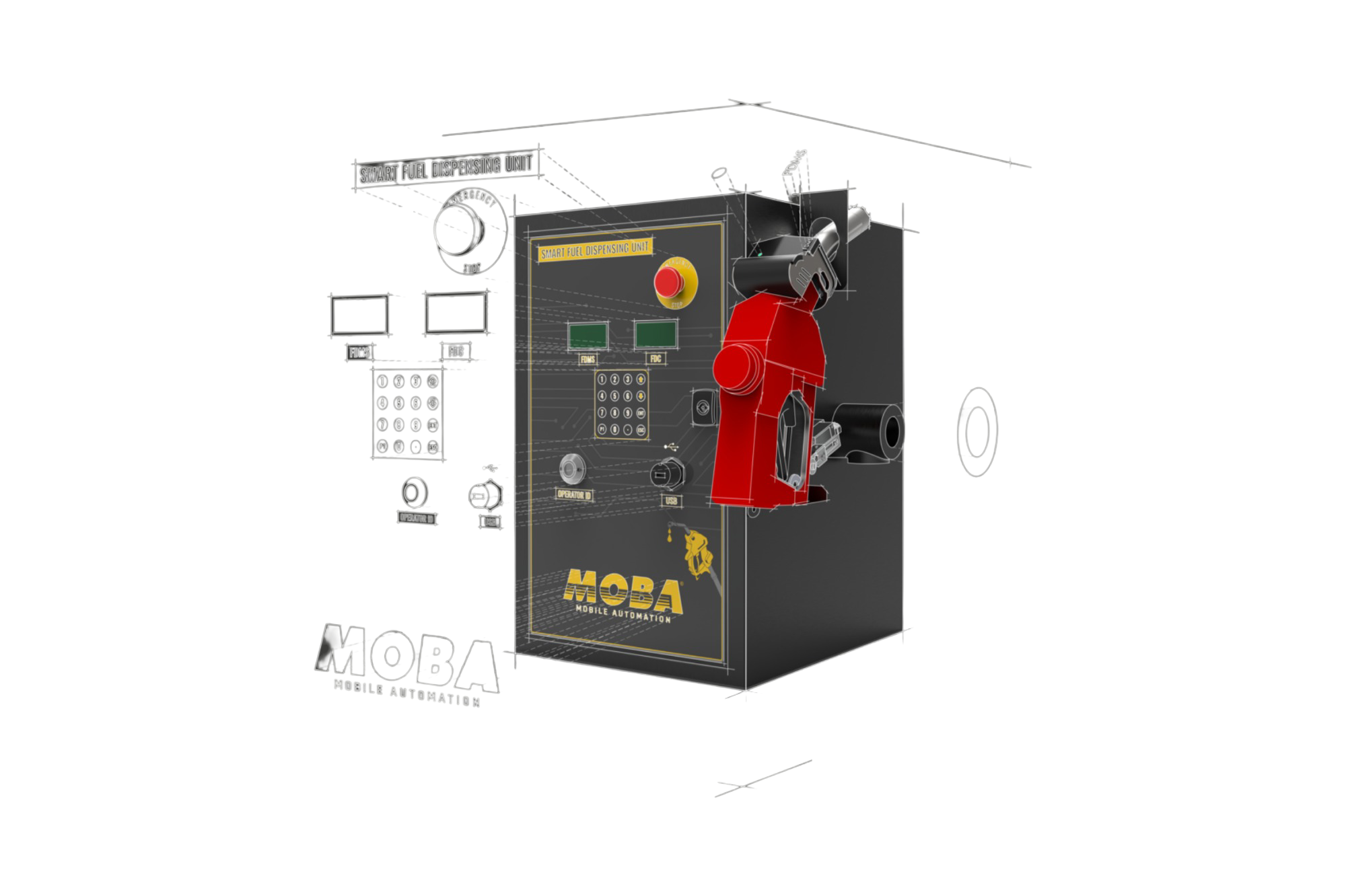

MOBA DISPENSE UNIT
A smart dispensing unit with hassle free dispensing and online connectivity. It can be installed easily on mobile bowsers. A single enclosure comprises of Hydraulics and Automation making it a compact mobile dispenser. It has advantages of mobile dispensing unit, FDC and FDMS all together.
COMPONENTS
BLE NOZZLE READER
It is a wireless, bluetooth enabled device whose sole purpose is to read the RFID tags installed on each equipent/vehicle. It reads the tag continously and sends the data to main controller for verification.
BLE Receiver
It is bluetooth device connected to the main controller. It helps the data captured by nozzle reader to reach the main controller. It also indicates the bluetooth status to operator via LED lights.
TAGS
These are specially designed passive RFID Tags by MOBA to identify each equipment/vehicle on-site with a unique encripted code which can be read by the MOBA BLE nozzle reader.
06
providing reliable performance
FUELMATIC-950
FUELMATIC is a complete solution for on-site low consumption areas. It is a 950 Litre Fuel Tank with built-in dispensing unit along with MOBA FDMS system. It can be used as stationary unit and can also be placed on a mobile vehicle to carry it easily for re-fueling. It has a convenience to be used on AC Power Supply and also comes with DC Battery Supply with charging facility. All safety devices like Fusible Plug, Pressure Vacuum Vent and Fire extinguisher are installed with the Unit. A standard 10mtr Hose Reel, Auto-cutoff Nozzle, Metering with pump & motor arrangement along with Vehicle authentication and RFID Based Automation to Track all the Fuel being dispensed via FUELMATIC.
07
providing reliable performance

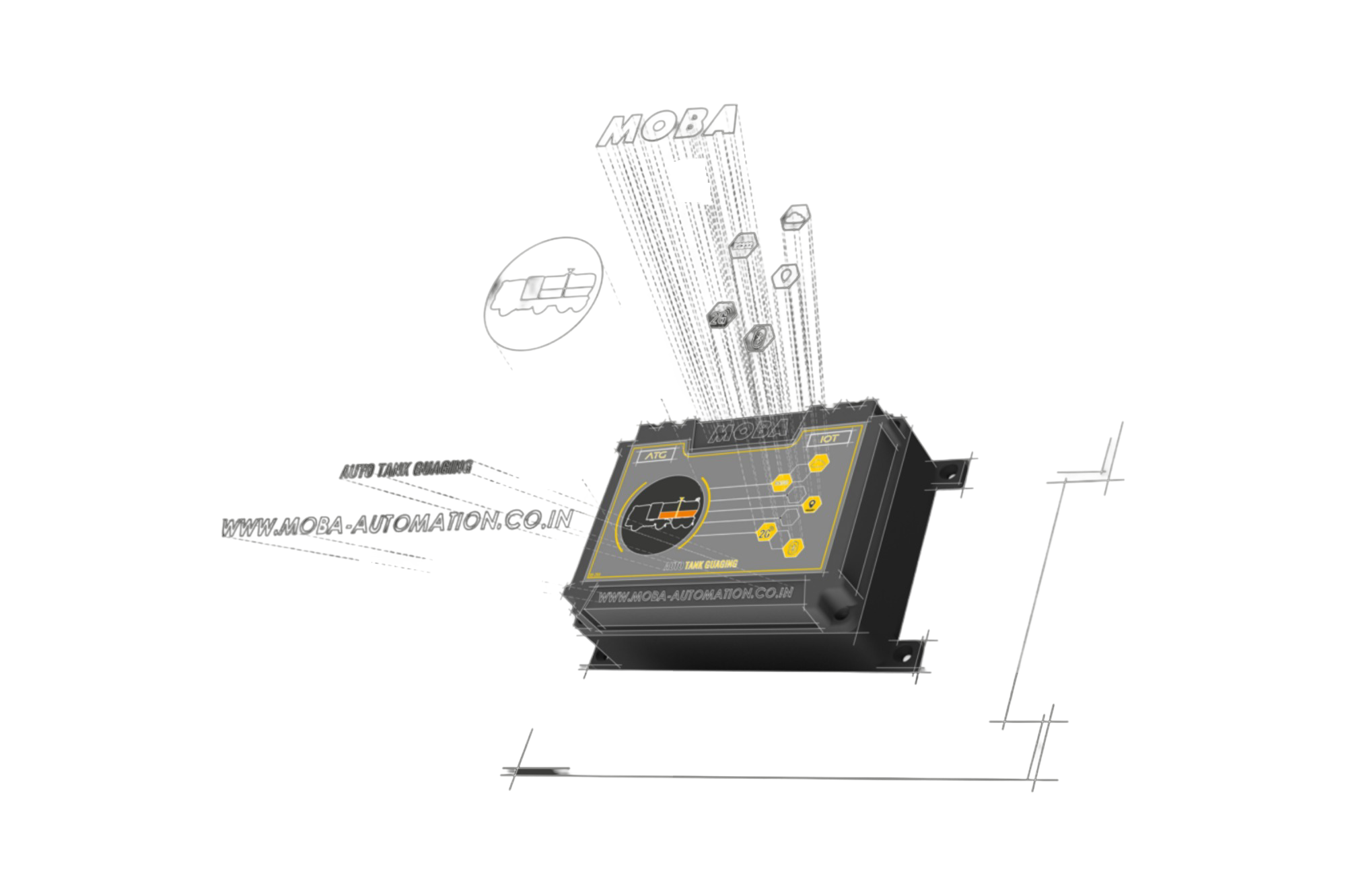

AUTOMATIC TANK GUAGING
ATG is a smart way to continuously monitor the FUEL Level in storage tanks. It can be installed in Underground/Stationary tanks or Mobile Bowsers/Tankers with FUEL LEVEL and TEMPERATURE visible continuously on the Online portal with Graphical representation. In case of underground tanks Water level as well as density of fuel can also be monitored to identify the dilution of the fuel quality. ATGs are the best way to monitor and Track the total fuel stock with-in company and at each site.
MOBA CLOUD & SOFTWARE
Empowering Efficient Fleet Management with Advanced Software Solutions
Unlock the full potential of your fleet management operations with MOBA Cloud and its suite of cutting-edge software solutions. Engineered to streamline workflows, enhance productivity, and maximize efficiency, MOBA Cloud offers a comprehensive platform tailored to meet the unique needs of modern fleet managers.
Your Advantages
- Manage your entire fleet from a single, intuitive dashboard. MOBA Cloud provides centralized access to real-time data, enabling you to monitor vehicle status, track performance metrics.
- Track the location, status, and usage patterns of vehicles and equipment in real time, allowing you to maximize asset utilization, prevent theft, and minimize downtime.
- Adapt MOBA Cloud to your unique business needs with its scalable and customizable architecture. Whether you operate a small fleet or a large enterprise, MOBA Cloud can be tailored to accommodate your specific requirements, ensuring flexibility and scalability as your business grows.
- Easy to customize or upgrade with new functionalities
- Mobile APPs for maintenance & inspection, asset management, task management and service support
- Out-of-the-box interface for easy and fast integration of third-party systems
MOBA CLOUD & SOFTWARE
Always well equipped
- Fleet management
- Tracking of vehicles
- Triggering of events and various reporting tools
- Ticket Center
- Personnel management
- Your Application
Can´t find your application?
We would be pleased to work with you in planning and developing the right module. You only get the functions you really need.
